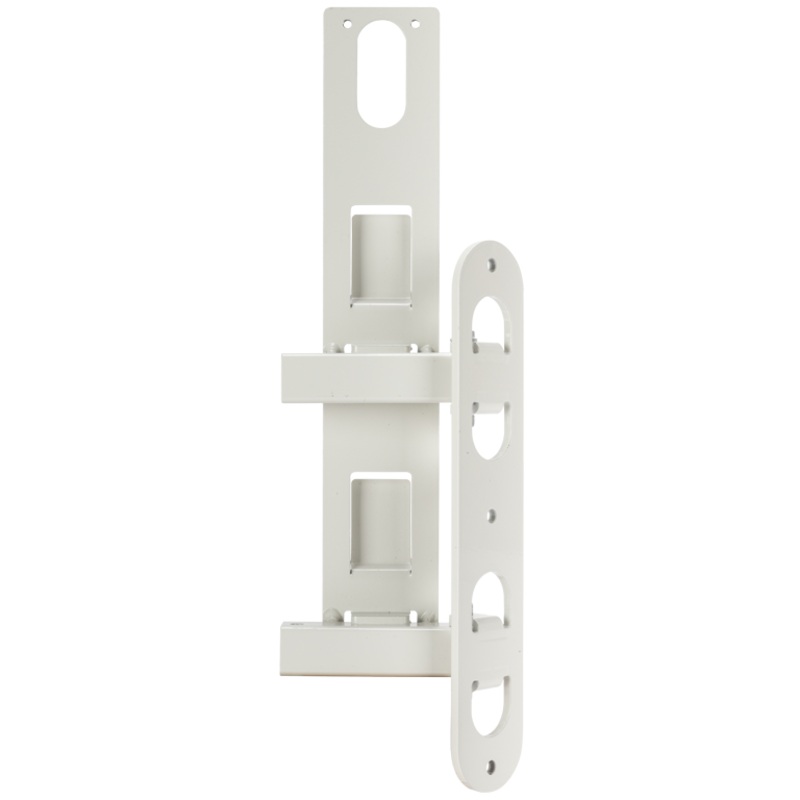

Each kit includes a pair of swivel brackets for wall mounting of a single RCF VSA 2050 II \ VSA 1250 II \ VSA 850 II Digitally steerable array loudspeaker system, with a horizontal angle pointing up to 60.

Features

• Two mounting points for the VSA loudspeaker rear side.
• Three holes for wall mounting through M5 wall plugs.
• Two bolts and nuts (used as pins) can be tightened to fix the VSA loudspeaker when the horizontal angle pointing is correct.
• Two holes to secure the VSA loudspeaker to the swivel bracket through two screws (M5x10).

Specifications

• Mounting points2
• Orientation Horizontal
• Maximum angle 60


Standard compliance

• Safety agency CE compliant


Physical specifications

• Color White – RAL 9003, Black – RAL 9005


Size / Weight

• Width 318 mm / 12.52 inches
• Weight 1.5 kg / 3.31 lbs
