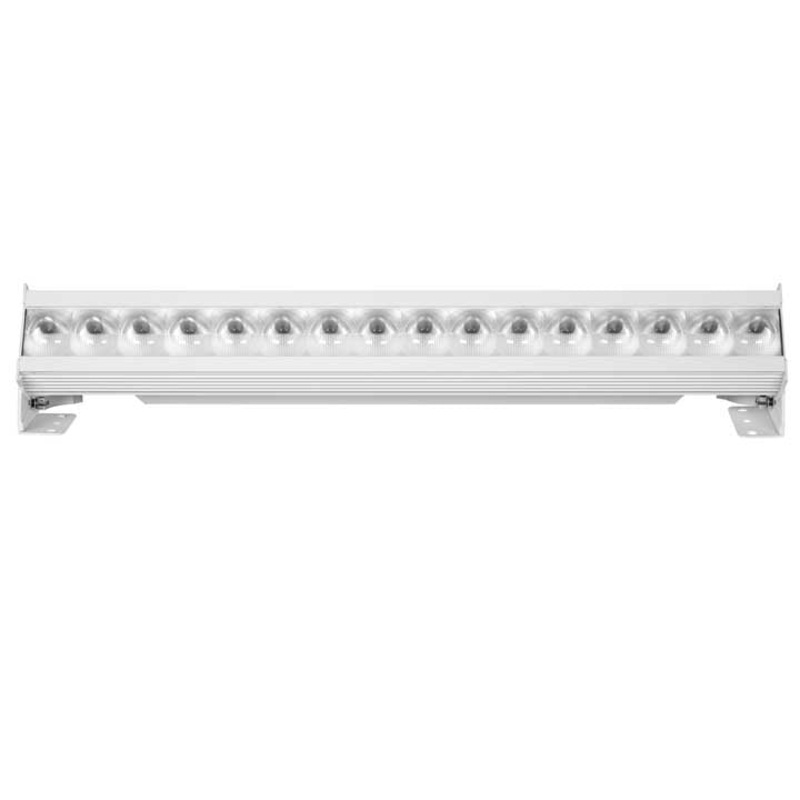

Once again, Chroma-Q impresses with Color Force II Plus, the updated version of the renowned Color Force II professional luminaire.The Color Force II Plus boasts enhanced brightness and a richer palette while maintaining the same form factor and character
Once again, Chroma-Q impresses with Color Force II Plus, the updated version of the renowned Color Force II professional luminaire.
The Color Force II Plus boasts enhanced brightness and a richer palette while maintaining the same form factor and character as the market-leading original. The innovative optical system with individually controlled pixels provides smooth, beautiful, and even coverage for any cyc or surface with no unsightly colour shadowing.
Designed for a variety of applications where powerful and precise lighting is essential, including cyc, flood, and wall washing up to 12m.
Using the very latest fully homogenised optics found in the award winning Chroma-Q product range, the Color Force II Plus fixtures output is a single, clean and pure beam of light, delivering a superior colour blend with no unsightly colour-mixing shadows.
The homogenised optics and improved Chroma-Q technology provide even brighter, richer, higher quality saturates and pastels, and a purer white – all from a single source.
Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.
Colour Consistency
Proprietary calibration technologies ensure each Color Force II Plus leaves the factory colour matched, delivering completely consistent colours unit to unit even side by side.
Even More Creative Control
The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths providing independently controllable cells every 3 inches.
Simply Amazing!
When you are ready for new fixtures the choice remains simple.
Schedule a demo of the Color Force II Plus today, and continue to be amazed.
RDM
Extensive RDM functionality is provided through wired or the optional LumenRadio CRM.
Features
Specifications
| Net Dimensions | 1,181mm x 165mm x 191mm / 46.5″ x 6.5″ x 7.5″ |
| Net Weight | 18 Kg / 40 lb |
| Shipping Dimensions | 1,295mm x 305 mm x 320mm / 51” x 12” x 12.5” |
| Shipping Weight | 21 Kg / 46 lb |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC, 50-60 Hz, 550VA |
| Power Factor | 0.97 @ 120V AC, |
| 0.92 @ 240V AC | |
| Power Consumption | 533W @ 120V AC, |
| 533W @ 240V AC | |
| Idle Power Consumption | 27W @ 120V AC, |
| 30W @ 240V AC | |
| Typical Power & Current | Measurements were done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. |
| Power Connectors In/Out | Neutrik powerCON TRUE1 |
| Data Connectors In/Out | Neutrik XLR 5-pin |
| Control Protocol | ANSI E1.11 USITT DMX 512-A |
| Cooling System | Forced |
| Operating Temperature | 0C to 40C |
| Construction | Anodised aluminium extrusion |
| Colour | White |
| Built-In Hardware | Quick release lever for tilt adjustment |
| IP Rating | IP20 |
| Approvals | CISPR 22: 2006/EN55022: 2006 & CISPR24: 1997/EN55024: 1998, ICES-003:2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 573:2003;UL 8750 |
| LED Engines | 16 |
| Hot Lumen Output (Combined) | 17,500 |
| Control Modes | RGBA, RGB, HSI, Look Sel, Master, x16 , x8 , x4 , x2 , x1, Odd /Even, Skp3 , Skp7 |
| Dimming Curve | Theatrical |
| Variable Effects Engine | Strobe, Strobe on Top, Strobe Random |
| Optics | Fully homogenised |
| Beam Angle | 22 (approx.) |
| Beam Angle With Optional Cyc Optic | 80 x 35 (approx.) |
| Beam Angle With Optional Border Optic | 43 (approx.) |
| Beam Distribution | Asymmetrical direct illumination |
| CCT | 1,000K – 10,000K |
| Colour Gamut | Performance enhanced |
| CRI | 92 |
| Lamp Life | L70 at 50,000 hours |
