The AN-16/i v.2 Input Module is used to connect up to 16 balanced line-level inputs from a mixing consoles direct outputs, insert points, aux sends, and/or submixes to a personal mixing system. When used alone, one AN-16/i v.2 can generate a single 16-channel A-Net signal.

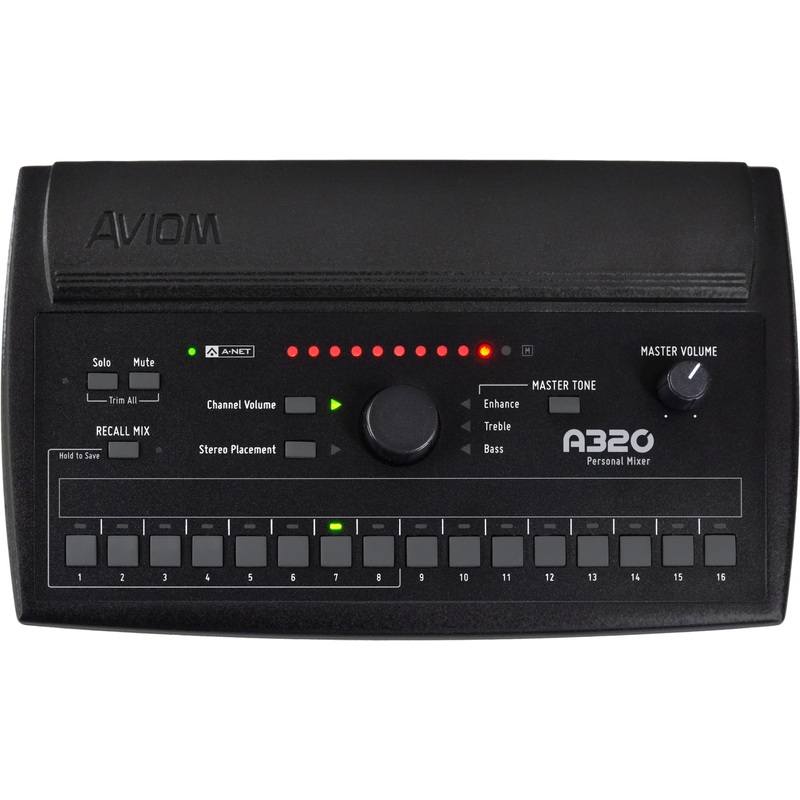

The A-Net In on the AN-16/i v.2 allows multiple Pro16 input devices (including console cards, AN-16/i-M, and the original AN-16/i) to be connected together to generate the higher channel count Pro16e version of A-Net used by the A360 Personal Mixer and A320 Personal Mixer.
Compatibility Note: The Pro16e A-Net output of the AN-16/i v.2 is not compatible with the original A-16 Personal Mixer, AV-P2 Output Module, AN-16/o v.3 Output Module, and AN-16/o v.4 Output Modules with serial numbers 51162 and lower.
Features
Specifications
| Audio Inputs | 16, balanced line-level, 1/4-inch TRS connector |
|---|---|
| Inputs | Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| TRS Thru | Impedance matched output |
| Analog to Digital Conversion | 48kHz sample rate, 24 bit |
| Frequency Response | 4Hz-22kHz |
| A- Net In | One Category 5 (RJ45 connector) Four-position slot range selector switch for use with Pro16e A-Net |
| A-Net Out | One Category 5 (RJ45 connector) |
| Gain Settings | Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu |
| Channel LED Indicators | Signal Present and Clip, per channel |
| Line Inputs | Impedance: 48k ohms |
| Metering | LEDs; green: Signal Present, red: Clip; per channel |
| Stereo Operation | Stereo Link, per channel pair; Two-position switch (Normal, Link) |
| Maximum Input Level | +22dBu |
| Input Impedance | 17.8k ohm |
| Freq. Response | 4Hz-22kHz +0.2dB/-3dB |
| THD +N | < 0.003% |
| Crosstalk | -90dB |
| Bit Error Rate (BER) | 10(-12) |
| Signal to Noise (unweighted) | 90dB typical, A/D to D/A Measured from AN-16/i to AN-16/o Output Module |
| Digital Outputs | A-Net: 1; RJ45 connector |
| Pro16e A-Net | Use unshielded Cat-5e UTP (or better) cable |
| Latency | <0.880 msec (measured from analog input to analog output) |
| Power Supply Input Voltage Output Voltage Plug Size |
External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 18-24 VDC, 0.5 amp 2 mm |
| Power | 18-24 VDC, 500mA |
| Dimensions | 19″ (482.6 mm) wide x 5.75″ (146 mm) deep; 1U high |
| Weight | 6.8 lb (3.08 kg) |
