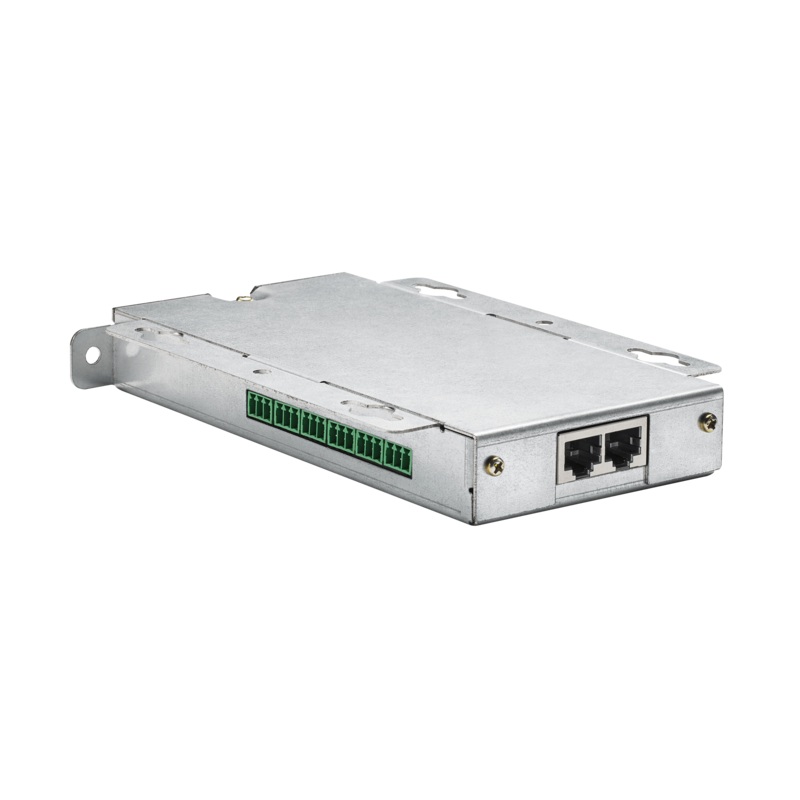

The ATUC-50IU has two RJ-45 ports, seven Euroblock connectors for audio and control options, and six Euroblock connectors for LED power and general-purpose input/output (GPIO). Mic input is compatible with ATUC-M43H, ATUC-M58H, ATUC-M32L, AT8657/LED, U891RCx and other microphones. Includes mic input, speaker output, headphone output, control input (Talk On, Vol. Up, Vol. Down, Channel Select Open/Closed contact), LED status output, GPIO. Designed for discreet installation (e.g., under a table). ATUC-50CU firmware version 1.6.0 or higher is required.For wired or wireless systems.
Specifications
| Discussion Unit | |
|---|---|
| Dynamic Range | 106dB A-Weighted |
| Frequency response | +1dB/ -2dB 20Hz 20kHz, +4dBu input @ 1kHz |
| Sampling Frequency | 24bit / 48kHz |
| Signal-to-Noise Ratio | 86dB A-Weighted |
| Connections | 2x RJ45, 39 pin on EuroBlock |
| Headroom | 20dB |
| Phantom Power | DC + 48V |
| Power Supply | DC + 48V |
| Power Consumption | 3.4W |
| Operating Temperature Range | 0 400C |
| Dimensions | 116 x 173 x 25mm |
| Weight | 460g |
